Modular plants
Tecnoecology
T Series: versatility and performance for industrial recycling
The T Series granulation and separation plants represent the flagship of Tecnoecology’s production. Engineered for the recovery of copper and aluminum from electrical cables, they deliver efficient, continuous processing through a uniform granulation stage that facilitates the dry separation of metal from insulating materials.
The key strength of the T Series lies in its ability to deliver high operational performance while maintaining exceptional configuration flexibility, enabling it to adapt seamlessly to a wide range of production environments and space requirements.
Modular plants
Modular design, ultimate flexibility

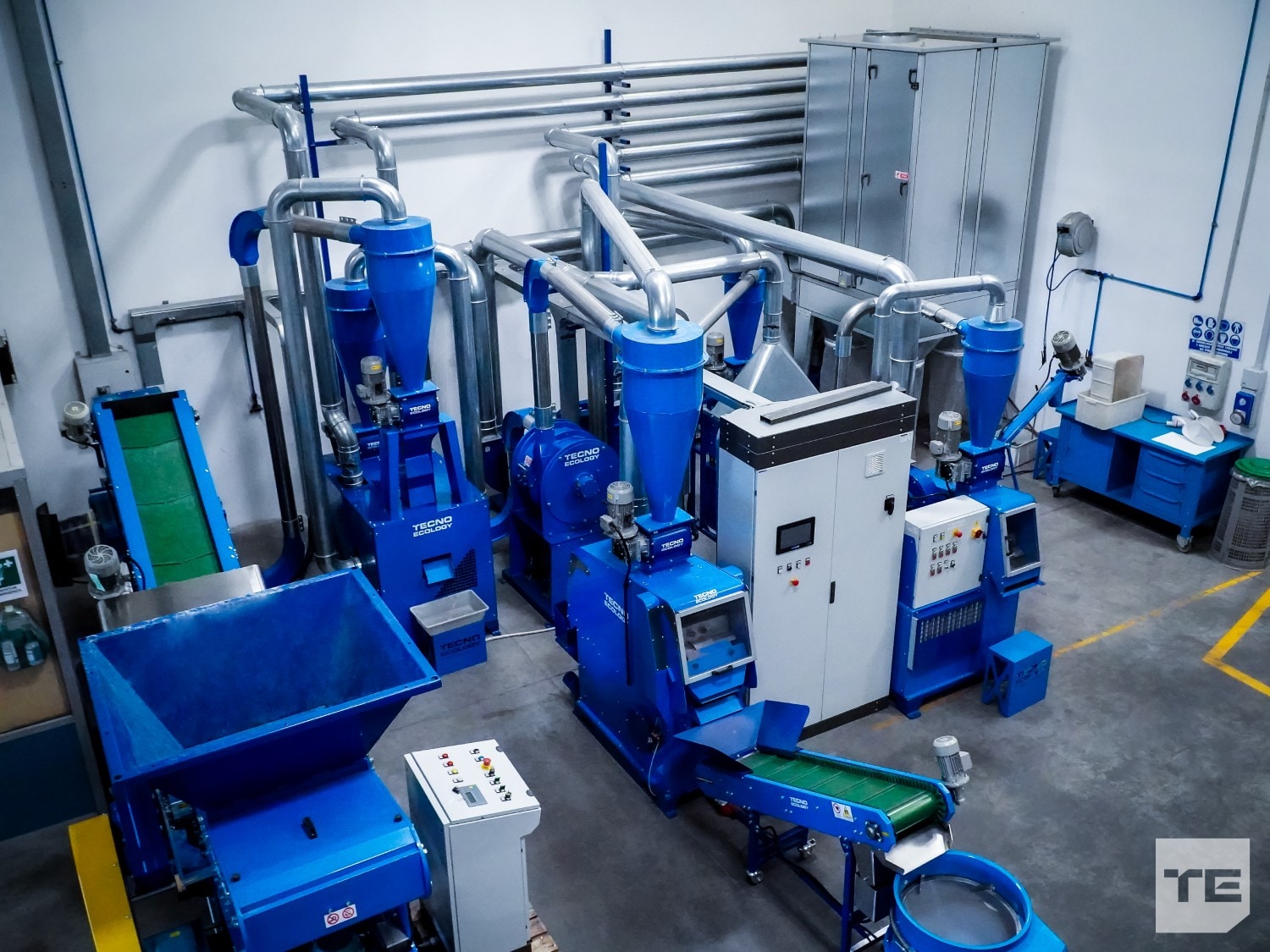

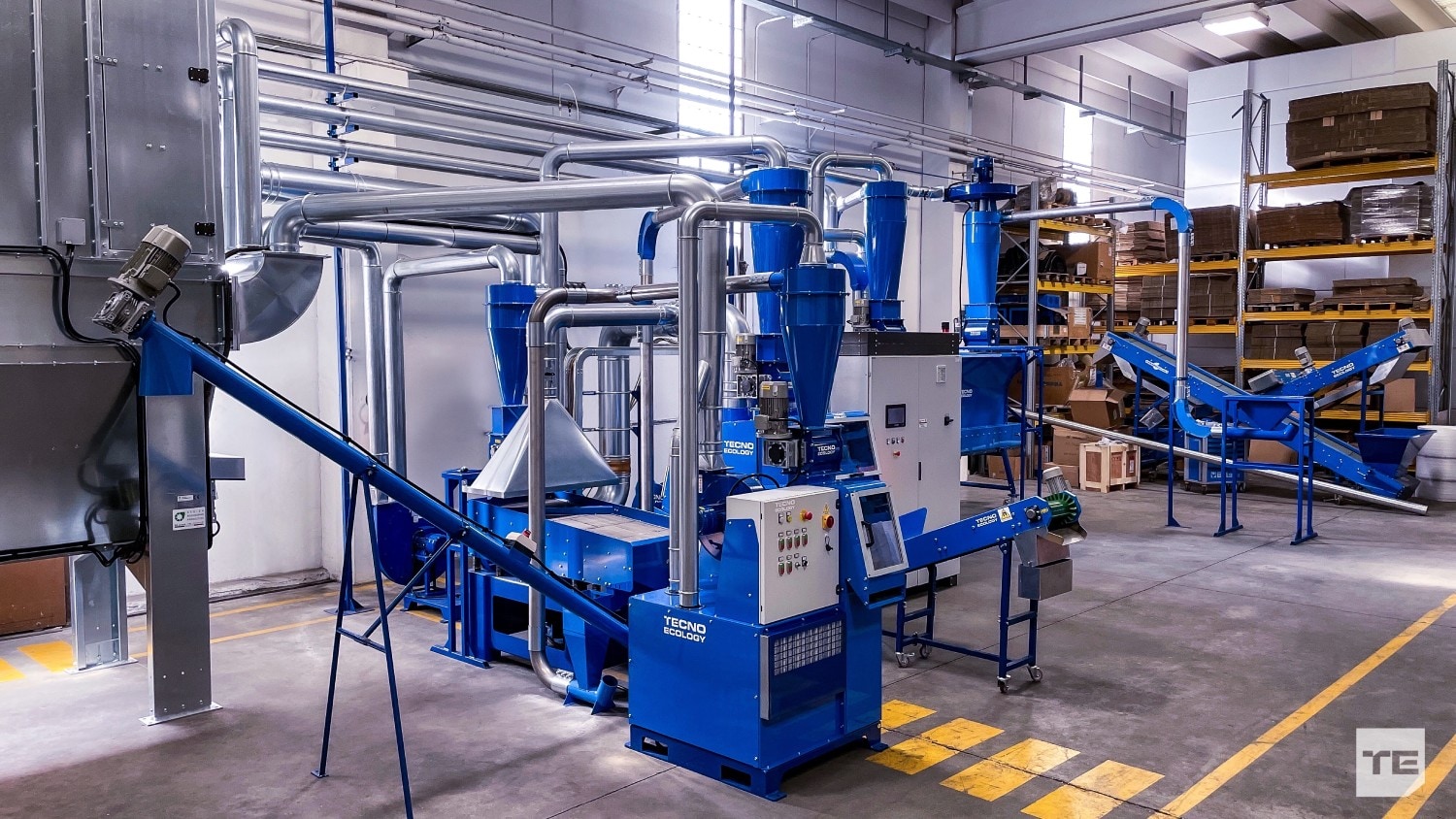

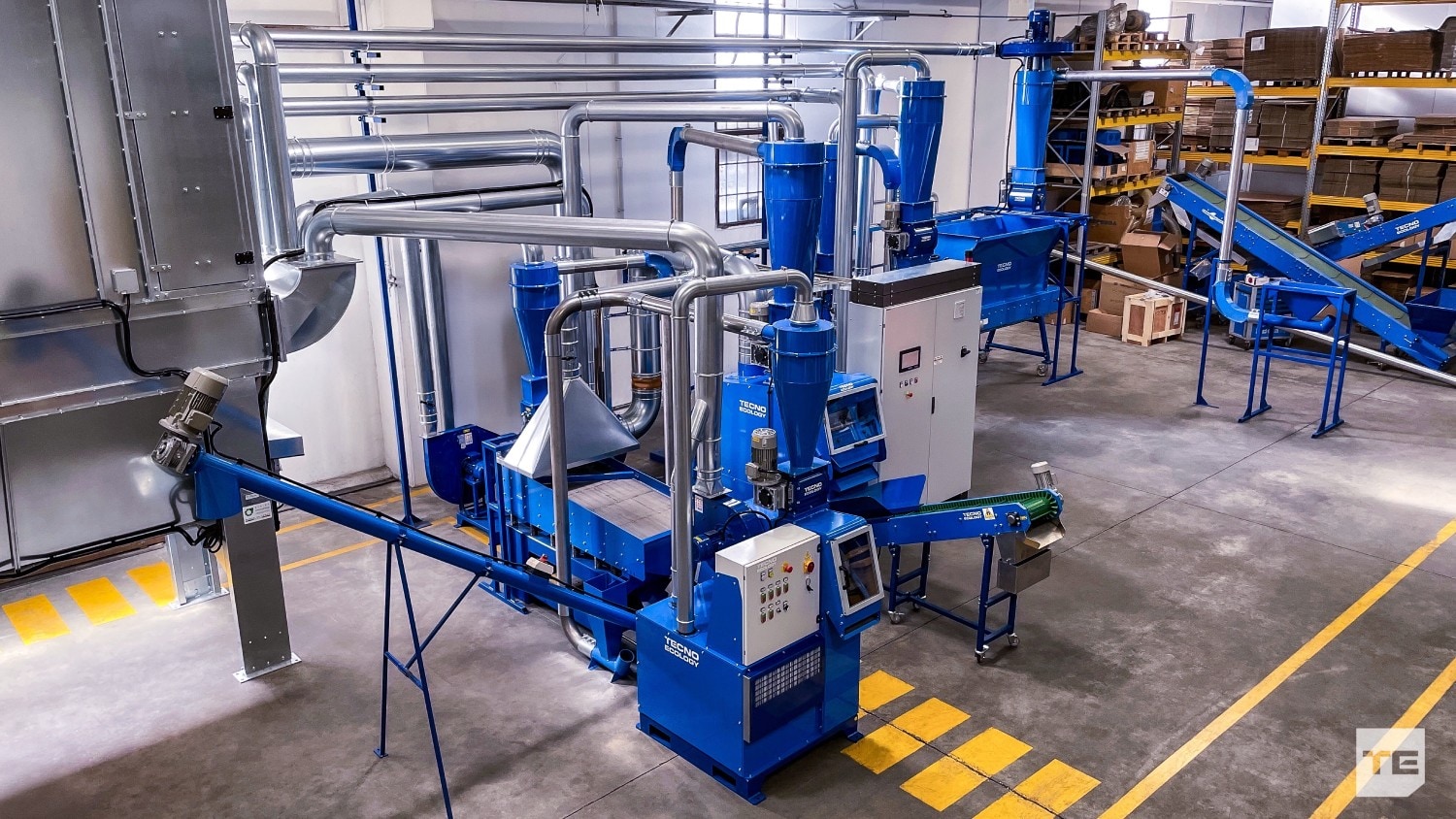

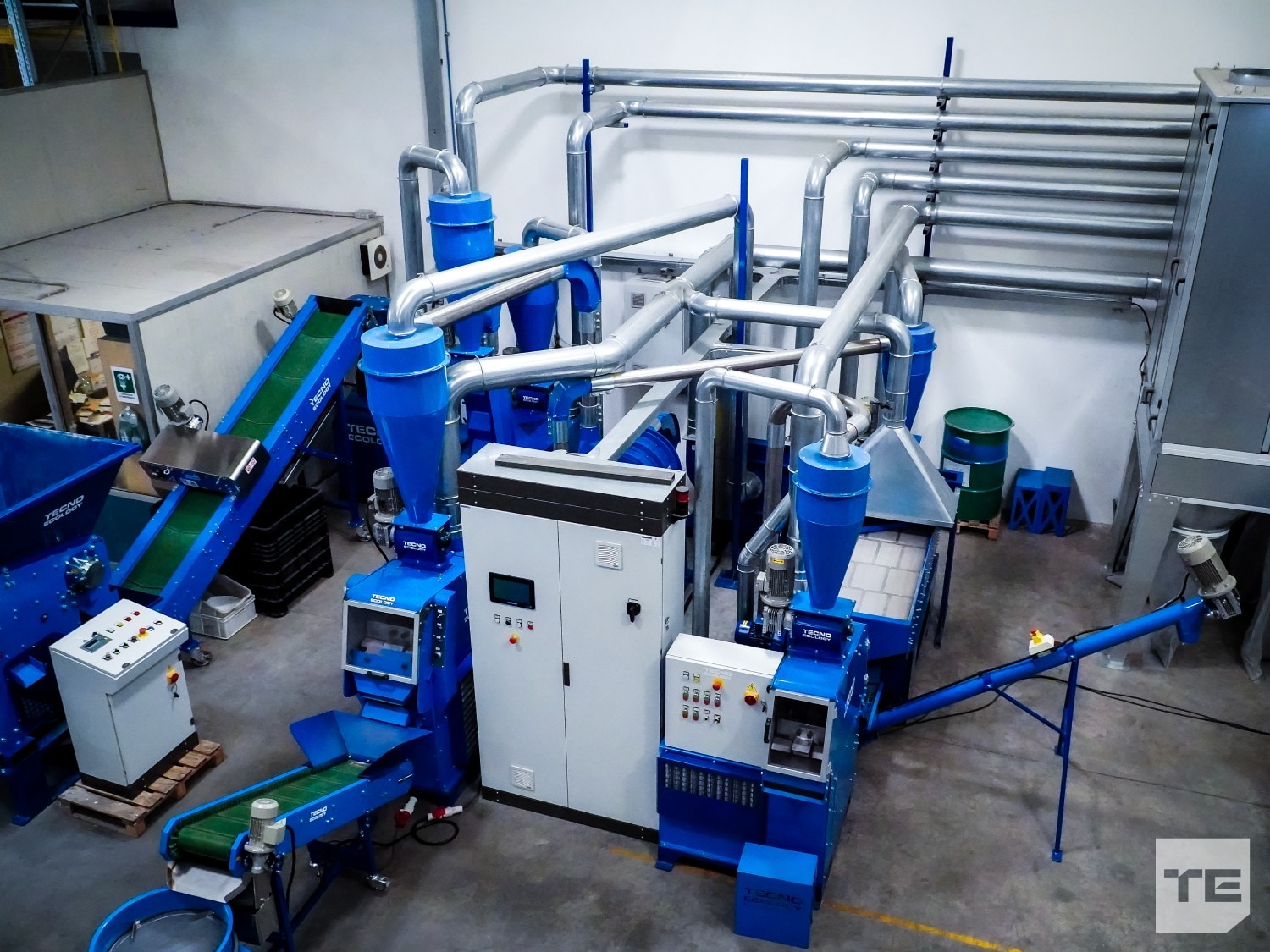

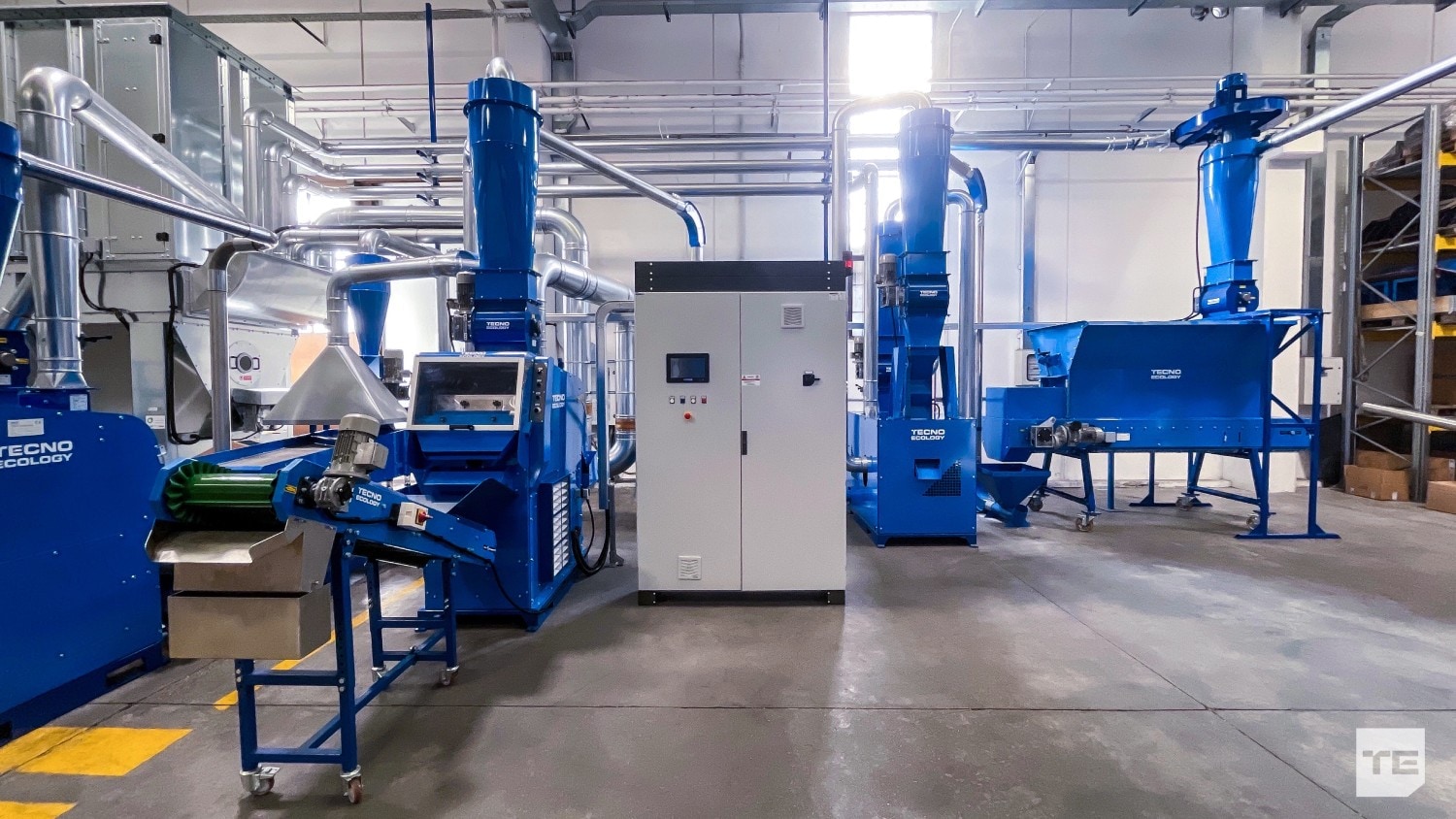

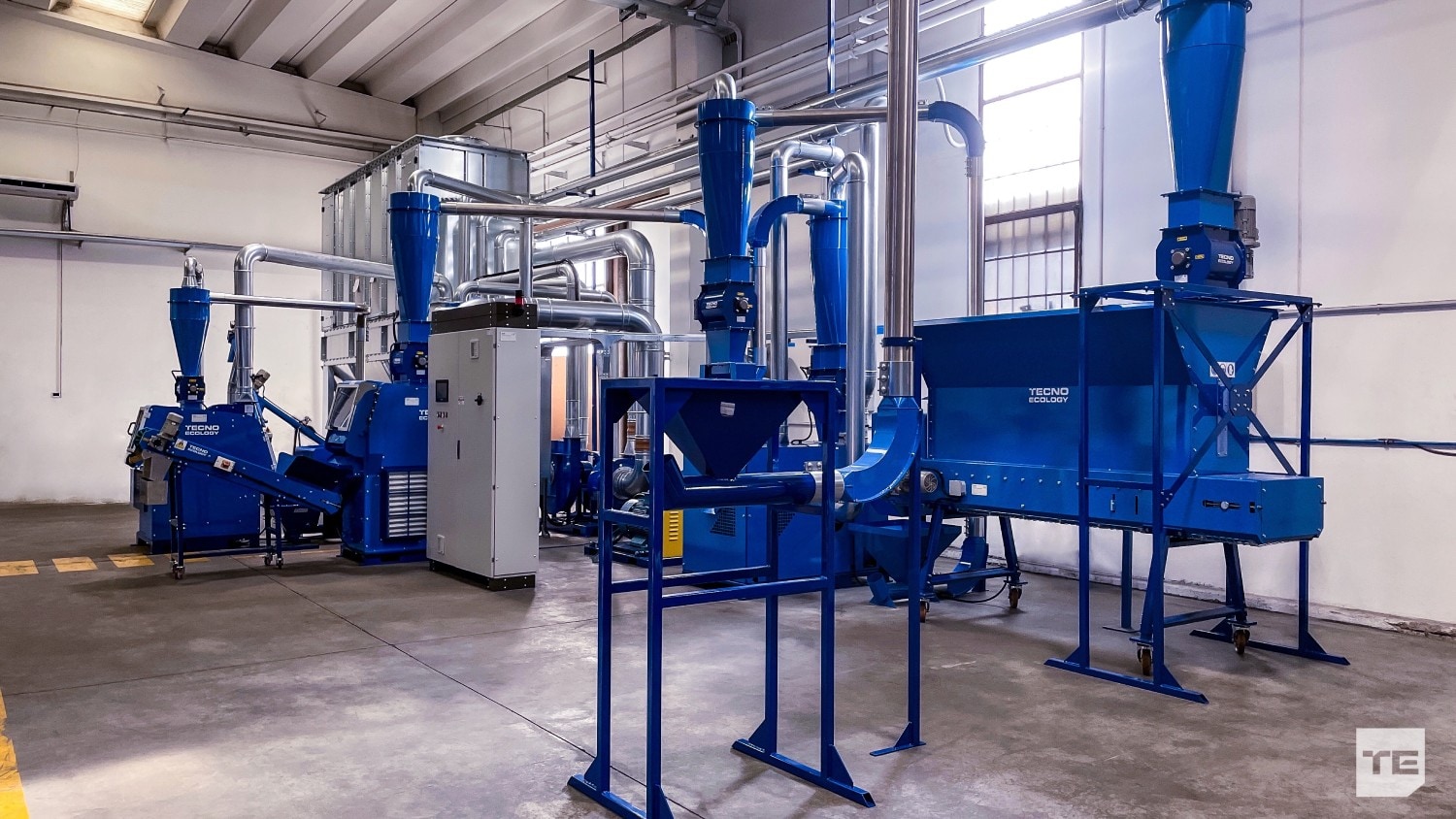

Each plant is composed of separate in-line machines, configured according to the customer’s required space and production capacity. The modular design also allows for easier future expansions or upgrades.
Material transport is managed by an open-circuit pneumatic system, which helps prevent overheating and ensures consistent process quality. All models are supplied with a dust filtration system and are ready for possible remote connectivity.
Modular plants
Five models to meet every need
The T Series is available in five models, each defined by its production capacity. Every configuration ensures the same level of build quality and reliability, while easily adapting to specific operational requirements. The standard setup includes a granulator (blade mill), zig-zag separator, turbo mill, and dry separation table.
| Hourly input capacity (kg/h) |
Maximum power consumption (kW) |
|
|---|---|---|
| T300 | 300 | 48 |
| T500 | 500 | 73 |
| T750 | 750 | 87 |
| T1000 | 1000 | 128 |
| T1500 | 1500 | 160 |
Modular plants
TOP FLOW: precise separation, peace of mind
To complete the T Series lines, we offer our TOP FLOW technology: an automatic electronic separation control system, designed to improve plant efficiency by reducing the need for continuous operator supervision.
Thanks to automatic airflow control and load speed modulation, TOP FLOW maintains constant quality and yield, even under variable conditions, such as mixed cables t processing.
An advanced technology designed for those seeking the ultimate in precision and reliability.
